Shape/Structure |
Enclosed Limit switches |
ctuator |

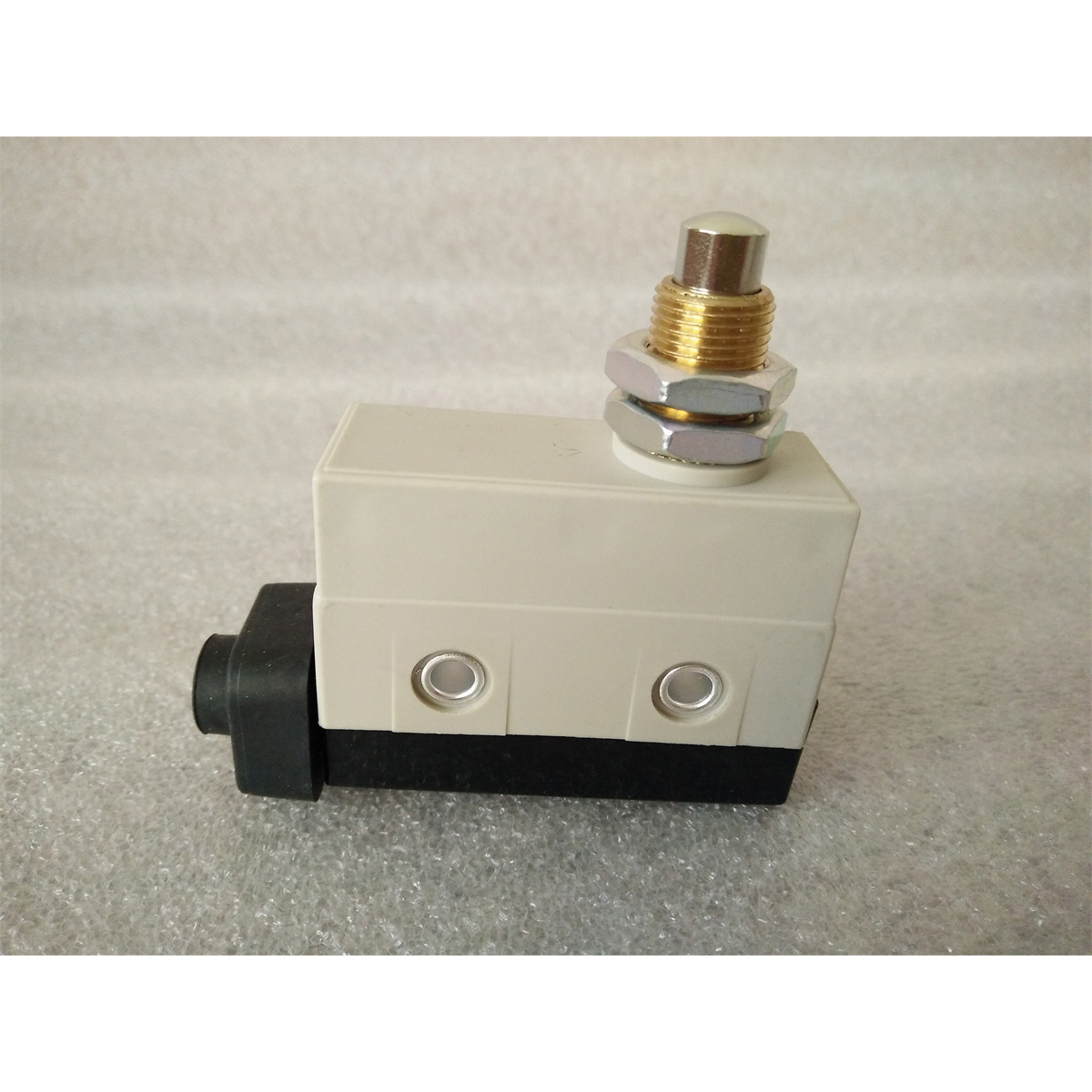

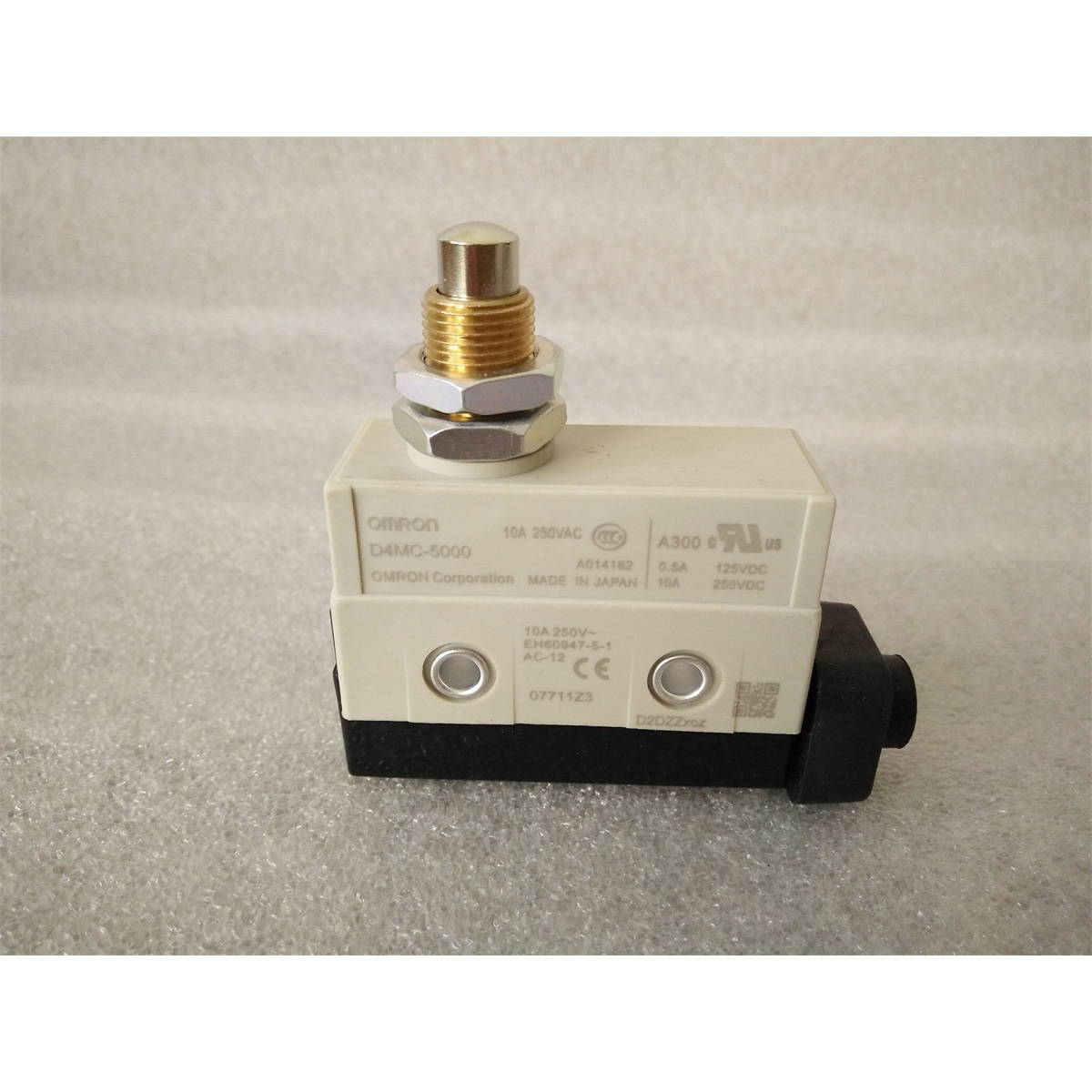

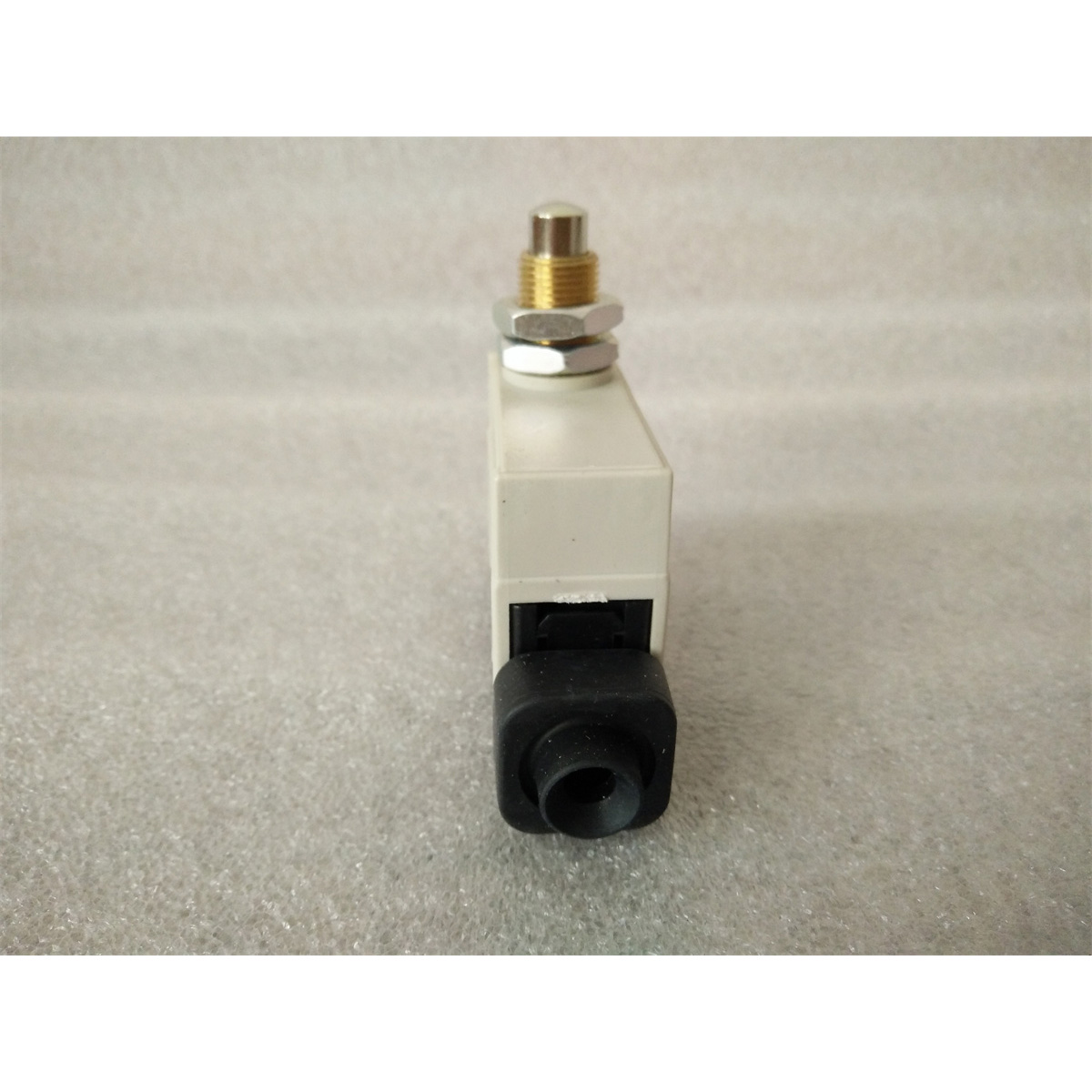

Panel mount plunger 8.4 dia.
Stainless-steel plunger |
Frequency |
50/60 Hz |
Contact form |
SPDT |
Load |
General load |
Ratings (AC): Non-Inductive load |
Resistive load: 10 A at 125 VAC/10 A at 250 VAC/3 A at 480 VAC
Lamp load (NC): 3 A at 125 VAC/2.5 A at 250 VAC/1.5 A at 480 VAC
Lamp load (NO): 1.5 A at 125 VAC/1.25 A at 250 VAC/0.75 A at 480 VAC
Inductive load: 10 A at 125 VAC/10 A at 250 VAC/2.5 A at 480 VAC
Motor load (NC): 5 A at 125 VAC/3 A at 250 VAC/1.5 A at 480 VAC
Motor load (NO): 2.5 A at 125 VAC/1.5 A at 250 VAC/0.75 A at 480 VAC |
Ratings (DC): Non-Inductive load |
Resistive load: 10 A at 8 VDC/10 A at 14 VDC/6 A at 30 VDC/0.5 A at 125 VDC/0.25 A at 250 VDC
Lamp load (NC): 3 A at 8 VDC/3 A at 14 VDC/3 A at 30 VDC/0.4 A at 125 VDC/0.2 A at 250 VDC
Lamp load (NO): 1.5 A at 8 VDC/1.5 A at 14 VDC/1.5 A at 30 VDC/0.4 A at 125 VDC/0.2 A at 250 VDC
Inductive load: 6 A at 8 VDC/6 A at 14 VDC/5 A at 30 VDC/0.05 A at 125 VDC/0.03 A at 250 VDC
Motor load (NC): 5 A at 8 VDC/5 A at 14 VDC/5 A at 30 VDC/0.05 A at 125 VDC/0.03 A at 250 VDC
Motor load (NO): 2.5 A at 8 VDC/2.5 A at 14 VDC/2.5 A at 30 VDC/0.05 A at 125 VDC/0.03 A at 250 VDC |
Inrush current |
NC: 30 A max.
NO: 15 A max. |
Ambient temperature |
Operating: -10 to 80 ℃ (with no icing) |
Ambient humidity |
35 to 95 % |
Permissible operating speed |
0.05 mm/s to 0.5 m/s |
Permissible operating frequency |
Electrical: 20 operations / 1 minute max.
Mechanical: 120 operations / 1 minute max. |
Contact resistance (Initial value) |
15 mΩ max. (initial value for the built-in switch whentested alone) |
Insulation resistance |
100 MΩ min. (at 500 VDC) |
Dielectric strength |
Between each terminal of the same polarities: 1,000 VAC 50/60 Hz 1 min
Between each terminal and non-live-metallic part: 2,000 VAC 50/60 Hz 1 min |
Durability |
Electrical: 500,000 operations min.
Mechanical: 10 million operations min. |
Vibration resistance |
Malfunction: 10 to 55 Hz, 1.5 mm double amplitude, Contact opening: 1 ms max. at the free position and the total travel position. |
Shock resistance |
Destruction: 1,000 m/s2 max.
Malfunction: 100 m/s2 max. (1 ms max. at the free position and the total travel position) |
Degree of protection |
IP67 |
Weight |
Approx. 71 g |
